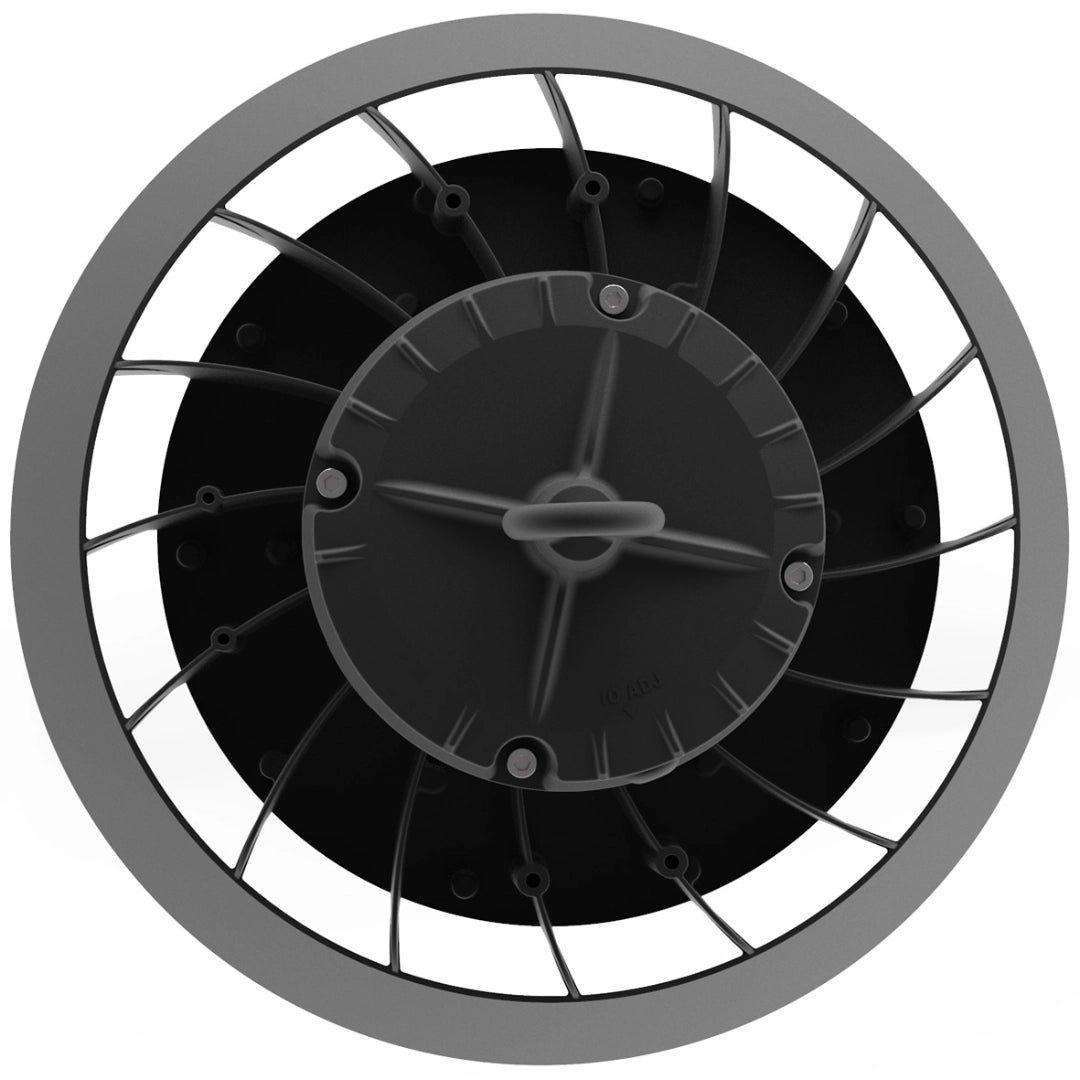

120° IP65 LED High-Bay Light – Professional High-Bay Lighting for Industry, Logistics, and Commercial Applications

Powerful lighting for demanding applications

High-efficiency LED high-bay lights for professional lighting in production halls, warehouses, workshops, and outdoor areas. Featuring a 120° beam angle for even area illumination, robust IP65 protection against dust and water, and high energy efficiency. Available with either 153W or 200W output.

Technical highlights at a glance

Two power levels for different requirements

• 153W version: 24,278 lumens, 4000K neutral white, energy efficiency class D – ideal for medium-height halls and standard applications
• 200W version: 31,907 lumens, 4075K neutral white, energy efficiency class C – for high ceilings and the most demanding lighting requirements

Optimal beam angle for area lighting

The 120° beam angle ensures even illumination of large areas without distracting shadow zones. Ideal for general lighting in halls, storage areas, and production spaces.

Robust construction for industrial environments

• IP65 protection rating: Completely dust-tight and protected against water jets from all directions – suitable for indoor and outdoor use
• Operating temperature: -20°C to +40°C – reliable operation even under extreme conditions
• Rugged aluminum housing: Durable, corrosion-resistant, and ideal for heat dissipation
• Impact-resistant construction: Resistant to mechanical stresses in demanding industrial environments

Energy-efficient LED technology

• High luminous efficacy: Up to 159 lumens/watt (153W) or 160 lumens/watt (200W)
• Long service life: Up to 50,000 operating hours – minimal maintenance required
• Instant start: Full brightness with no warm-up time – even at low temperatures
• Flicker-free: Eye-friendly lighting for fatigue-free work

Areas of application

Industry & Production

Lighting for production halls, manufacturing areas, assembly halls, and industrial facilities. The high light output and robust construction meet the demands of challenging production environments.

Logistics & Warehousing

Optimal illumination of warehouses, picking areas, dispatch zones, and high-bay warehouses. The wide beam angle minimizes the number of lights required and reduces installation costs.

Workshops & Skilled Trades

Professional lighting for automotive workshops, carpentry shops, metalworking companies, and craft businesses. Neutral white light for precise work and excellent color rendering.

Outdoor areas & covered spaces

Thanks to its IP65 protection, ideal for covered outdoor areas, loading zones, ramps, carports and drive-throughs. Resistant to weather conditions and moisture.

Sports & leisure facilities

Lighting for sports halls, tennis centers, riding arenas and multi-purpose halls. Flicker-free light for sports and leisure activities.

Technical specifications

153W LED high-bay light

• Power: 153 watts
• Luminous flux: 24,278 lumens
• Luminous efficacy: 159 lumens/watt
• Color temperature: 4000K (neutral white)
• Energy efficiency class: D
• Beam angle: 120°
• Protection rating: IP65
• Voltage: 230V AC / 50Hz
• Operating temperature: -20°C to +40°C
• Service life: approx. 50,000 hours
• Material: Aluminum housing

200W LED high-bay light

• Power: 200 watts
• Luminous flux: 31,907 lumens
• Luminous efficacy: 160 lumens/watt
• Color temperature: 4075K (neutral white)
• Energy efficiency class: C
• Beam angle: 120°
• Protection rating: IP65
• Voltage: 230V AC / 50Hz
• Operating temperature: -20°C to +40°C
• Service life: approx. 50,000 hours
• Material: Aluminum housing

Optional swivel mounting bracket

For maximum flexibility during installation, we offer a swivel mounting bracket as optional accessory. The bracket enables continuous adjustment of the high-bay light and is compatible with both power variants (153W and 200W).

Benefits of the mounting bracket

• Flexible alignment: Continuously adjustable for optimal light distribution
• Stable mounting: Robust construction for secure support
• Easy installation: Quick mounting on ceilings, walls or trusses
• Universally applicable: Suitable for both high-bay light models
• Durable material: Corrosion-resistant for a long service life

Mounting & installation

Easy installation in just a few steps

1. Determine the mounting position: Plan optimal positioning for uniform illumination
2. Attach the mounting: Mount the high-bay light directly or with the optional swivel bracket
3. Electrical connection: 230V connection by a qualified electrician
4. Optimize the alignment: Precisely adjust the direction using the swivel bracket
5. Commissioning: Ready for immediate use with no burn-in period

Important note: Installation must be carried out by a qualified electrician in accordance with the applicable installation regulations. If in doubt, we recommend hiring a qualified electrical contractor.

Planning recommendation for optimal hall lighting

Reference values for sizing

Basic rule: The required number of high-bay lights depends on the hall height, desired illuminance and room geometry.

Recommended illuminance levels according to DIN EN 12464-1

• Storage areas, traffic routes: 150-200 Lux
• Rough assembly work: 300 lux
• Standard installation, workshops: 500 lux
• Fine assembly, quality control: 750-1000 Lux

Example calculation for a 500 m² warehouse (target: 200 lux)

• Total required luminous flux: 500 m² × 200 lux = 100,000 lumens
• With 153W high-bay light: 100,000 lumens ÷ 24,278 lumens = approx. 5 units (including safety factor)
• With 200W high-bay light: 100,000 lumens ÷ 31,907 lumens = approx. 4 units (including safety factor)

Note: This is a simplified calculation. For precise lighting design, please contact us – we will be happy to help you determine the optimal dimensions for your industrial hall lighting.

Overview of the benefits of LED high-bay lights

Cost-effectiveness

• Up to 80% energy savings: Compared with conventional high-bay lights (HQL, NAV)
• Minimal maintenance costs: 50,000-hour service life = approx. 17 years at 8 hours/day of operation
• No bulb replacement: Permanently installed LEDs drastically reduce maintenance requirements
• Low operating costs: Low electricity costs thanks to high efficiency

Light quality

• Neutral white light: 4000K for natural color rendering and focused work
• Flicker-free: Easy on the eyes and fatigue-free – important for workplaces
• Even illumination: 120° beam angle for uniform light distribution
• Instant full brightness: No warm-up or ignition time as with gas-discharge lamps

Reliability

• IP65 protection: Dust-tight and protected against water jets for harsh environments
• Temperature-resistant: Reliable operation from -20°C to +40°C
• Robust housing: Resistant to impacts and mechanical stress
• Long service life: Up to 50,000 operating hours without any loss of performance

Scope of delivery

• 1x LED high-bay light (choice of 153W or 200W)
• Mounting hardware for standard installation
• Operating instructions in German
• Optional: Swivel mounting bracket (available separately)

Sustainability & efficiency

Environmentally conscious lighting technology

• Energy efficiency: High luminous efficacy reduces CO₂ emissions and electricity costs
• Mercury-free: No toxic heavy metals like those found in gas-discharge lamps
• Long service life: Fewer replacements mean lower resource consumption and less waste
• Recyclable: Aluminum housing and electronic components are recyclable
• Reduced heat generation: Lower cooling loads in air-conditioned halls

Comparison: LED vs. conventional industrial hall lighting

Kriterium	Criterion	LED high-bay light
HQL/NAV (conventional)	153W / 200W	Energy consumption
400W / 600W (comparable brightness)	Energy savings	-
Up to 80%	Service life	50,000 hours (approx. 17 years)
10,000–15,000 hours (approx. 3–5 years)	Start-up time	Instantly 100% brightness
3–5 minutes warm-up time	Minimal (no lamps)	Regular lamp replacement
Light quality	Flicker-free, constant	Flickering possible, brightness may decrease
Environment	Mercury-free	Contains mercury (hazardous waste)
Operating temperature	-20°C to +40°C	Limited in cold conditions

Cost comparison & payback period

Example calculation for a 500 m² warehouse

Scenario: 5 high-bay lights, operated 8 hours daily, 250 working days/year, electricity price €0.30/kWh

200W LED high-bay light

• Power consumption: 5 × 200W = 1,000W = 1 kW
• Annual consumption: 1 kW × 8 hrs. × 250 days = 2,000 kWh
• Electricity costs/year: 2,000 kWh × €0.30 = €600
• Maintenance costs: Minimal (no lamp replacements for over 17 years)

Conventional 400W HQL (comparable brightness)

• Power consumption: 5 × 400W = 2,000W = 2 kW
• Annual consumption: 2 kW × 8 hrs. × 250 days = 4,000 kWh
• Electricity costs/year: 4,000 kWh × €0.30 = €1,200
• Maintenance costs: Approx. 5 lamp replacements at €50 = €250/year
• Total costs/year: €1,200 + €250 = €1,450

Annual savings with LED

• Electricity cost savings: €1,200 - €600 = €600/year
• Maintenance cost savings: €250/year
• Total savings: €850/year
• Payback period: Typically 2–4 years, depending on the purchase costs

Over 10 years of operation: Savings of approximately €8,500 with just 5 high-bay lights—correspondingly more for larger installations.

Frequently asked questions (FAQ)

Which power option do I need?

153W high-bay light: Suitable for ceiling heights of up to approximately 6–8 meters and standard applications (warehouses, workshops, smaller production halls). Sufficient for illuminance levels of up to 300 lux.

200W high-bay light: Recommended for ceiling heights above 8 meters, large areas, or higher lighting requirements (precision assembly, quality control). Achieves illuminance levels of up to 500 lux and more.

Is the swiveling mounting bracket necessary?

The high-bay light can also be mounted directly without a swivel bracket. However, the bracket offers significantly more flexibility for positioning—especially recommended for:

• Sloped ceilings or trusses
• Targeted illumination of specific work areas
• Subsequent adjustment of the light direction
• Wall mounting instead of ceiling mounting

Can the high-bay light be used outdoors?

Yes, thanks to its IP65 protection rating, the high-bay light is suitable for covered outdoor areas (carports, loading zones, covered ramps). It is not suitable for completely unprotected outdoor areas directly exposed to the weather without a roof.

How long is the actual service life?

The stated 50,000 operating hours are realistic and correspond to:

• Approx. 17 years with 8 hours of daily operation
• Approx. 11 years with 12 hours of daily operation
• Approx. 8 years with 16 hours of daily operation

After this period, the LEDs still have approx. 70% of their original brightness—a complete failure is rare.

Are the high-bay lights dimmable?

These models are not dimmable.

Which color temperature is right?

Both models have neutral-white light (4000K and 4075K respectively)—ideal for work areas:

• Neutral white (4000K): Focus-enhancing, practical light for production and storage areas
• Good color rendering: Natural color representation for precise work
• Not too cold: More comfortable than cool-white variants (6000K+)

Can I install the high-bay lights myself?

The mechanical installation can be carried out by people with suitable DIY skills. However, the electrical connection (230V) must be carried out strictly by a qualified electrician—for safety reasons and to maintain the warranty.

LED high-bay lights are extremely reliable. Should a defect nevertheless occur, the statutory warranty applies. The permanently installed LEDs cannot be replaced individually—in the event of a defect, the entire light must be replaced.

Safety instructions

• Installation by a qualified electrician only: Connection to the 230V mains may only be carried out by qualified personnel
• Check that the power is off: Switch off the power supply before installation work and ensure that no voltage is present
• Do not touch while switched on: The housing may become warm during operation
• No modifications: Opening or modifying the light will void the warranty
• Observe the mounting load: Check the load-bearing capacity of the mounting points (weight approx. 2–3 kg per light)
• Ensure adequate ventilation: Do not obstruct heat dissipation with covers or insulating materials
• Observe the protection rating: Even with IP65, do not install in permanently wet environments (e.g., underwater)

Professional high-bay lighting for your business

Invest in modern, energy-efficient LED technology and benefit from significantly reduced operating costs, minimal maintenance, and optimal light quality. Our LED high-bay lights combine cost-effectiveness, reliability, and durability—the perfect solution for demanding industrial and commercial applications.
